Eiwitbal Rolling Machine
Created with Pixso.

P188 Four Hoppers Encrusting Machine for 3-Fillings Ball and Multi-Layer Products with 220V Voltage and 400kg Weight

P188 Four Hoppers Encrusting Machine for 3-Fillings Ball and Multi-Layer Products with 220V Voltage and 400kg Weight

Merknaam: PAPA
Modelnummer: P188
MOQ: 1
Prijs: Onderhandelbaar
Betalingsvoorwaarden: T/t
Toeleveringsvermogen: 30 sets per maand
Detailinformatie
Plaats van herkomst:
CHINA
Certificering:
CE
Productgewicht:
10-250g
Uitvoer:
20-80 stks/min
Sollicitatie:
Productie van eiwitballen
Spanning:
220V
Gewicht:
400 kg
Stroombron:
Elektrisch
rollende snelheid:
Verstelbaar
Stroom:
3 kW
Dimensie:
1350*1000*1400 mm
Gebruik:
Proteinballen maken
Baldiameter:
10-50 mm
Garantie:
1 jaar
Verpakking Details:
Houten behuizing
Levering vermogen:
30 sets per maand
Markeren:

3-Fillings Ball Encrusting Machine

,

220V Voltage Protein Ball Rolling Machine

,

400kg Weight Multi-Layer Encrusting Machine

Productomschrijving

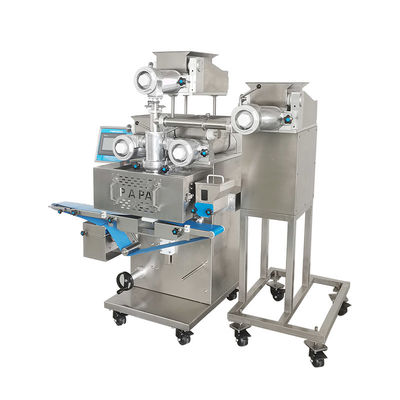

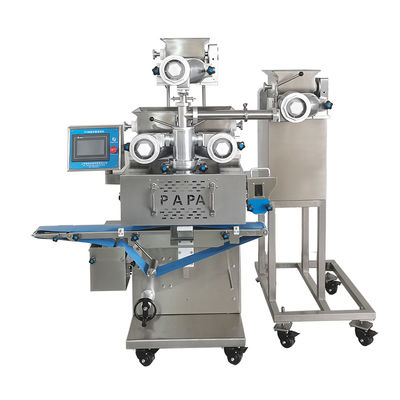

P188 Four Hoppers Encrusting Machine | For 3-Fillings Ball & Multi-Layer Products
Create Complex 3-Fillings Balls with Unmatched Precision

The P188 Four Hoppers Encrusting Machine is engineered for advanced food production. It can simultaneously handle one outer dough and up to three different fillings, enabling the creation of multi-textured products like never before.

Key Benefits at a Glance
  • 4-Hopper Flexibility: Dedicated hoppers for the outer dough and three distinct fillings (e.g., paste, sauce, solid pieces)
  • Precision Encrusting: Advanced servo systems ensure each filling is perfectly centered with minimal waste
  • High-Output Production: Achieve outputs of 2,000 - 4,500 pieces per hour based on product complexity
  • Quick Changeover: Easily switch between product shapes and sizes with interchangeable molds and saved recipes
  • Hygienic Design: Full 304 Stainless Steel contact parts, easy to disassemble and clean
Unlock a New Dimension of Product Innovation

Move beyond single-filling products. The P188 empowers you to create intricate "ball within a ball" type snacks that command a premium in the market. Imagine a protein ball with an outer layer, a fruit paste middle layer, and a solid nut core - all produced automatically.

How It Achieves Multi-Layer Encrusting
  1. Dough & Filling Supply: The four hoppers independently supply the outer dough and the three fillings. Each filling path is precisely controlled.
  2. Sequential Injection: The machine's sophisticated nozzle head sequentially injects the fillings, layer by layer, while simultaneously forming the outer dough shell.
  3. Forming & Cutting: The multi-layered product is then formed into a perfect sphere and cleanly cut.
  4. Output: The finished balls are discharged onto a conveyor for the next stage (e.g., coating, cooling, packaging).
Technical Specifications
Parameter Description
Model P188
Number of Hoppers 4 Hoppers (1 for dough, 3 for fillings)
Production Capacity 2,000 - 4,500 pcs/hour (Depends on product size and number of fillings)
Product Weight Range 15g - 250g (easily adjustable)
Filling Ratio Total filling ratio up to 40% (adjustable for each filling)
Power Requirements 380V / 3Phase / 50Hz (Can be customized for other standards like 480V/60Hz)
Control System Advanced PLC + Touchscreen HMI with recipe memory for over 100 profiles
Construction Material Contact Parts: 304 Stainless Steel
Who It's For & The Value It Brings
Ideal For:
  • Innovative Snack Companies: Developing next-generation protein balls, energy bites, and functional snacks with complex textures
  • Confectionery Manufacturers: Producing premium stuffed chocolates, truffles, and mochi with multiple centers
  • Dessert Specialists: Creating gourmet dessert balls (e.g., cake pops with layered fillings)
  • Contract Manufacturers (Co-packers): Offering advanced encrusting capabilities to multiple clients
Your Return on Investment:
  • Create High-Value Products: Multi-layer products allow for significant premium pricing and stronger branding
  • Reduce Labor Costs: Automate a highly complex manual process that is nearly impossible to replicate by hand at scale
  • Minimize Waste: Precise volumetric control of each ingredient reduces giveaway
  • Boost Innovation: Rapidly prototype and launch new, exciting products that stand out on shelves
Frequently Asked Questions (FAQ)
Q1: Can it handle fillings with different viscosities, like a thick paste and a liquid sauce?
A: Yes. The P188 is specifically designed with independent filling systems and specialized pumps/nozzles to handle a wide range of viscosities, from solid nut pieces to fluid fruit sauces, simultaneously.
Q2: How does the machine ensure the fillings remain centered and don't mix?
A: Through precise servo motor control and a carefully designed injection sequence. The fillings are injected in a specific order and contained within the developing dough shell, preventing them from mixing before the outer layer is sealed.
Q3: Is it difficult to clean the multiple filling pathways?
A: The machine is designed for efficient cleaning. The filling lines, nozzles, and hoppers are designed for quick disassembly (often tool-free), allowing for thorough cleaning and sanitation between production runs.
Q4: Can we test the machine with our own recipes?
A: Absolutely! We highly recommend a free test run at our facility. You can send us your outer dough and filling samples, and we will produce samples for you and provide a video of the entire process.
